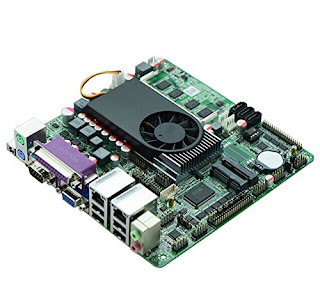

Mini ITX HTPC Motherboards

Mini ITX HTPC Motherboards/Mainboard



Product Description

Chipset: Intel® NM70 Chipset
Memory: Support Dual-channel memory, integrated DDR3 2GB express memory, max. up to 8GB.
Provide 1*SO memory slot, supporting 1333/1066MHz memory, max. up to 8GB.
Graphics: Intel® HD Graphics
Offers 2*VGA,1*HDMI,1*LVDS(support Dual 24bit)Any combination can achieve dual display.
Expansion Slots: 1* Mini-PCIE (support WIFI/3G)
1* MSATA (support SSD 6Gbps/WIFI)
LAN: 2*RTL8111E 10/100/1000Mbps Ethernet
Support Wake-on-LAN and PXE function
Storage: 3* SATAII 3Gbps
Audio: Integrated Realtek HD ALC662 for 6-Channel output
Support MIC/Line-out
Rear I/O: 1* 12V DC_JACK input (Support 8V-36V Power Supply ;Suggest 9-24V Power)
1* PS/2
1* DB9 COM, the 9th pin supports +5V/+12V charged function
1* LPT
1* DB15 VGA
2* RJ-45 LAN
4* USB 2.0
1* AUDIO I/O (MIC and Line-out)
Internal I/O: 9* RS232, COM2 and COM3 also support RS485/422 and 9PIN charged function.
1* LVDS(2*15pin),support dual channel 24bit LCD
1* JHDMI 2*8Pin
1*J VGA1 2*5pin
1*VGA2 2*5pin
4* USB 2.0
1* AUDIO
1* FP1 (2*5pin Front panel buttons and LED connected)
1* TX-RXCOM RS485/422 2*4Pin
1* PS/2
1* SIM
1* ATX_12V ( Support 8V-36V Power Supply ;Suggest 9-24V Power)
2* PWROUT (Hard drive power connector)
Fun interface: 1* CPUFAN and SYSFAN 4pin
GPIO: 1* GPIO (Support 4-way GPIO function)
BIOS: AMI 32MB Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Input: Support DC_8V-36V Power Supply (Suggest 9-24V Power)
Operating Temp.: -10°C~60°C
Storage Temp. -20°C~70°C
Humidity: 0%-95%(relative humidity; non-condensing)
